Edit custom programmable buttons and script

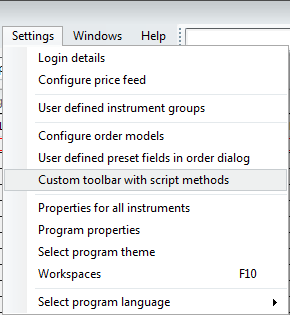

Click Settings > User toolbar for fixed analysis methods in order to open the editor.

How to create and edit a new custom button:

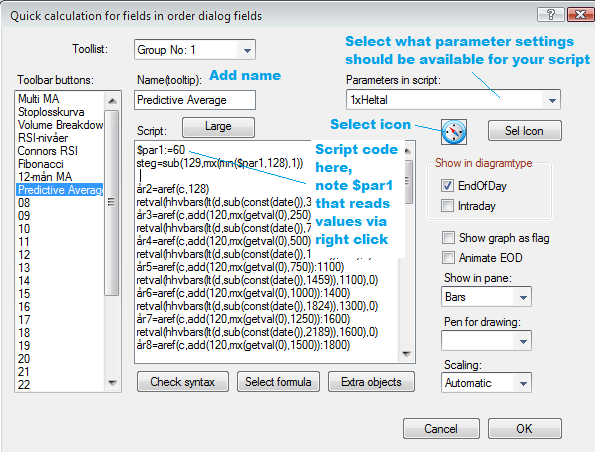

1. Select Group No: in the dialog shown above

2. Decide a name for your button and double click on the "box" number you want to place it

3. Enter the script code to be used by your button and select what parameters should be available by right clicking the button

4. If you plan to use variable parameters, be aware of the syntax for $par1 according to the example above.

5. Open the drop menu to the right and choose the number and kind of parameters to be used, for example 1xHeltal (one single float number
      parameter)

6 . Select an icon to be used for your button. som ska associeras med knappen. You can upload your own (24x24) in sub catalog /Images under
       the database-catalog.
      (c:/programdata/autotraderbas/images)

7 . Decide what drawing properties should be used to the right, for example EndOfDay or Intraday, what scaling to use etc.

8 . Test syntax and click the box corresponding to the button name, then OK to save. The next time you load the workspace your button will be
      visible and ready to use.

Parameter settings are indiviually saved for intraday- and EndOfDay-charts. This enables you to set optimum parameters for each chart resolution.
